2015 Touring – FUEL FILTER – REMOVAL

1. Remove top plate. See 4.7 FUEL TANK TOP PLATE.

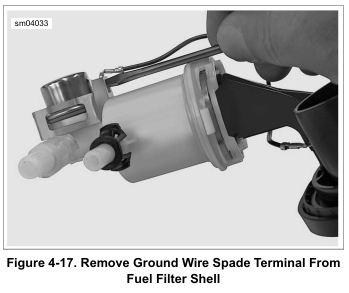

2. Locate ground wire spade terminal in slot of fuel filter shell. Insert tip of small flat blade screwdriver through window to press tang, and then pull terminal from slot. See Figure 4-17.

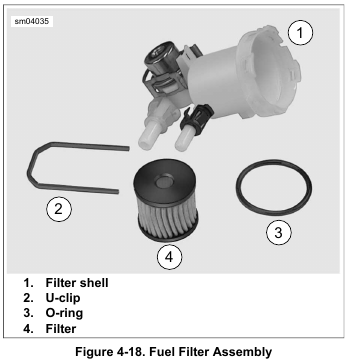

3. See Figure 4-18. Gently raise locking arm and pull U-clip (2) from holes in fuel filter shell.

4. Remove fuel filter shell (1) from end cap.

5. Remove O-ring (3) and filter (4) from fuel filter shell.
