2015 Touring – TOP END OVERHAUL : DISASSEMBLY – PUSHRODS, LIFTERS AND COVERS

NOTE

Mark parts for location and orientation upon removal.

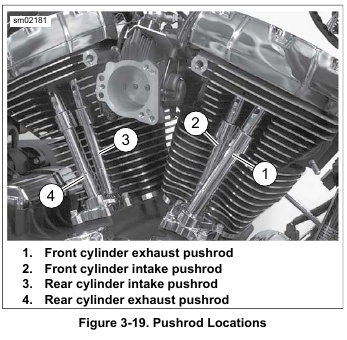

1.  See Figure 3-19. Remove the intake and exhaust pushrods and pushrod covers:
a. Remove pushrods.
b. Remove pushrod covers.
c. Remove three O-rings from pushrod covers and discard. If O-ring is missing from upper pushrod cover, make sure to dislodge it from the cylinder head bore.

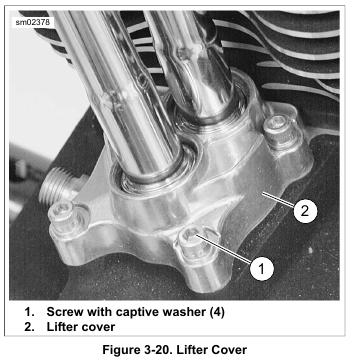

2. See Figure 3-20. Remove lifter covers:
a. Using a crosswise pattern, remove four screws (1).
b. Remove the lifter cover (2) and gasket. Discard gasket.

3. Remove lifters:
a. Remove the anti-rotation pin to free the hydraulic lifters.
b. Remove the lifters and place in clean plastic bags to prevent contamination.

4. For inspection and repair information, see 3.21 PUSHRODS, LIFTERS AND COVERS.
