1. Remove top plate. See 4.7 FUEL TANK TOP PLATE.
2. Remove fuel level sender. See 4.10 FUEL LEVEL SENDER.
3.
Pull up on transfer tube bracket to release two tabs at
bottom from slots at top of fuel pump bracket.
4. Press collar on each side of fitting to disconnect transfer tube from transfer tube bracket.

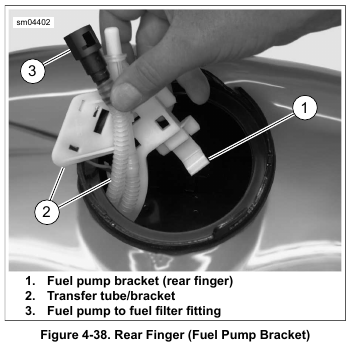

5. See Figure 4-38. Pull up on rear finger and slide fuel pump bracket forward until four ears on bracket are free of catches at top of tunnel.

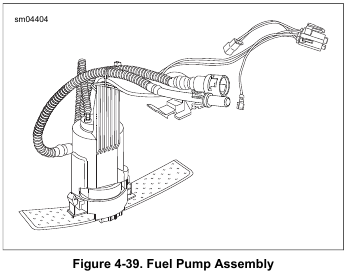

6. See Figure 4-39. Remove fuel pump from left side of fuel tank. Rotate fuel pump assembly 90 degrees clockwise until transfer tube connection is pointing rearward. Remove from fuel tank.
7. If necessary, further disassemble fuel pump assembly :
a. Reaching into fuel tank, release transfer tube from weld clip on right side of tunnel and remove from fuel tank.
b. Press arms on fuel inlet strainer and remove from slots in fuel pump housing.
c. Inspect the condition of the fuel pump wiring. If the wiring needs to be replaced, see 4.17 FUEL PUMP, Fuel Pump and Fuel Level Sender Wire Harness.
