2015 Touring – FUEL LEVEL SENDER – REMOVAL

1. Remove top plate. See 4.7 FUEL TANK TOP PLATE.

2. Disconnect 2-place connector to release fuel level sender from wire harness.

NOTE

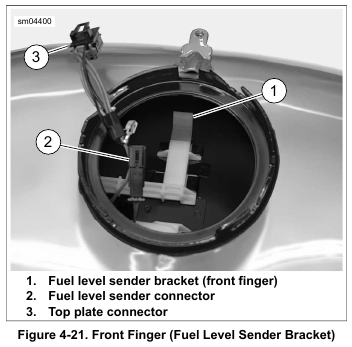

See Figure 4-21. Look into fuel tank at bracketry. Note that finger (1) on front bracket points forward, while finger on rear bracket points rearward.

3. Pull up on front finger (1) and slide fuel level sender bracket rearward until four ears on bracket are free of catches at top of tunnel.

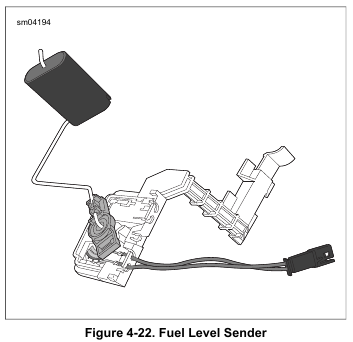

4. Remove fuel level sender from left side of fuel tank. See Figure 4-22.
