2015 Touring – CRANKSHAFT POSITION SENSOR (CKP) – INSTALLATION

Written by

1. Install new O-ring on sensor body if damaged. Apply a thin film of clean engine oil to O-ring before installation.

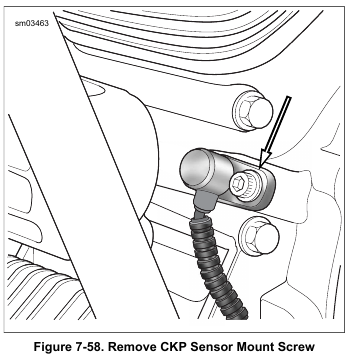

2. See Figure 7-58. Secure sensor with screw. Tighten to 100-120 in-lbs (11.3-13.6 Nm).

3. Route connector and convoluted tubing downward at rear of front engine stabilizer link to front caddy at bottom of lower frame crossmember.

4. Mate connector [79].

5. Mount connector to caddy T-stud.

6. Install main fuse. See 7.3 SYSTEM FUSES AND RELAYS.
